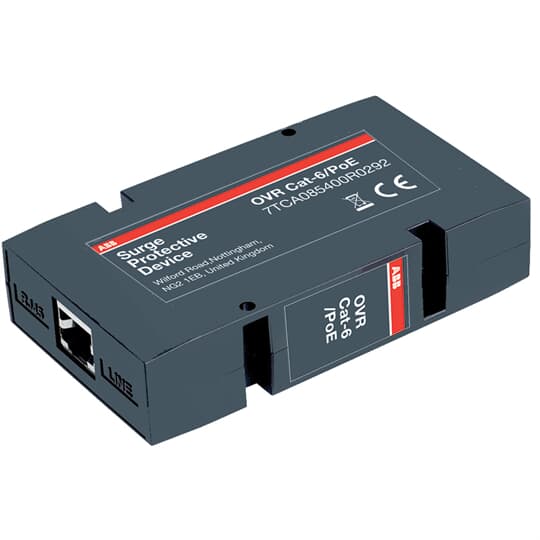

7TCA085400R0291_OVR CAT-6

Thông số Chống sét lan truyền cho đường dữ liệu CAT-6_OVR CAT-6
                Mã sản phẩm :7TCA085400R0291
Technical
Nominal AC Voltage of the System (Uo):5 V
Number of Protected Poles:1
Product Main Type:Data SPD
Standards:IEC 61643-21
Discharge Current:I (max, 8 / 20 µs) 10 kA
Maximum Continuous Operating Voltage (Uc):5 V
Voltage Protection Level ( Up):21 V
Serial Resistance:1.5 Ω
Product Name:Surge Protective Devices
Suitable For:To protect systems against transient overvoltages or surges from lightning and electrical switching events
Dimensions
Product Net Width:240 mm
Product Net Depth / Length:106 mm
Product Net Height:60 mm
Product Net Weight:0.15 kg
